Energy Monitor, Operating Instructions

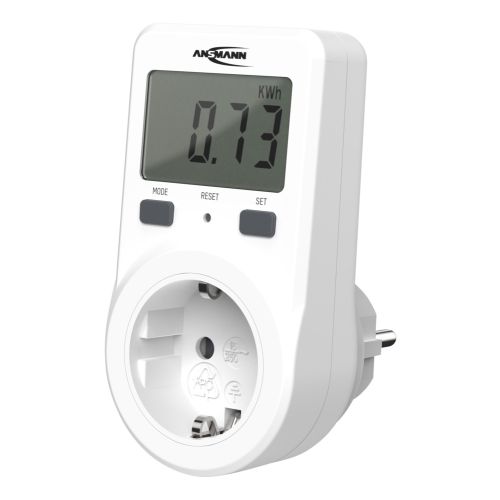

Power Meter APM1
Energy cost meter with extra large display and adjustable electricity tariff
| Part number | 1260-0008 |
|---|---|
| EAN code | 4013674197965 |
| Product content | Energy Monitor, Operating Instructions |
| Packaging unit pieces | 6 Stück |
| Product weight | 0.108 kg |
| Dimensions | 5.7 × 7.6 × 10.9 cm |
Measure the power consumption of your devices easily with the Ansmann energy monitor Power Meter APM1.
Simple operation
The power meter determines the most important power values quickly and reliably. Simple operation with only two buttons. The large display is easy to read and shows related values at a glance.
Individually programmable
Your individual electricity tariff per kWh can be easily programmed on the device. Both the consumption in kWh and the cost amount can be read off directly.
Extensive measurement and display functions
- Cost calculation for the total measurement
- Energy consumption (kWh)
- Current power (W)
- Current mains voltage (V)
- Reset button
The maximum connected load is 3680 W, the internal power consumption during the measurement is not included in the calculation and is max. 0,300 W
Messung von Solareinspeisung
Der Energiemonitor kann auch Solareinspeisung von Balkonkraftwerken mit entsprechendem Wechselrichter messen. Die Stromflußrichtung ist für das Messgerät nicht entscheidend.
| Input voltage | 230V AC |
|---|---|
| Max. input current | 16 A |
| AC frequency | 50 / 60 Hz |
| Power consumption at no load | 0,300 W |
| Protection class | IP20 |
| Maximum power | 3680 W |
| Max. output current | 16 A |
| Color | white |
| Packaging | box |
| Storage temperature | -15 - 45 °C |
| Operating temperature | -10 - 40 °C |
