Timer, operating instructions

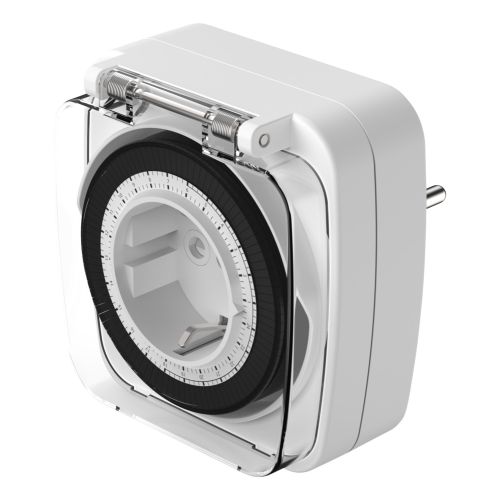

Damp room timer AES7
Mechanical 24h timer switch with up to 48 switching operations, IP44 splash-proof, max. 3680W load capacity.
| Part number | 1260-0013 |
|---|---|
| EAN code | 4013674194599 |
| Product content | Timer, operating instructions |
| Packaging unit pieces | 48 Stück |
| Product weight | 0.187 kg |
| Dimensions | 9 × 9 × 8.5 cm |
Save energy, time and money! The splash-proof (IP44), mechanical timer from ANSMANN is ideally suited for outdoor use or in damp rooms. Garden lighting, irrigation and much more can be switched easily. Simply plug it into a suitable socket and use it with a suitable "Schuko" connection cable.
Energy saving
Eliminate stand-by consumption of your outdoor equipment and reduce your electricity costs through pre-programmed switching on and off! Whether Christmas lights or watering the garden - the mechanical timer saves money.
Programmable
Plan the switching times with 15 minute accuracy - with 96 switching segments, up to 48 on/off switching operations can be programmed per day.
Highly resilient
With the high load capacity of max. 16A (3680 watts, 2A inductive), there is virtually no limit to the devices that can be connected.
Increased contact protection
Increased contact protection in the earthed socket.
| Input voltage | 230V AC |
|---|---|
| Max. input current | 16 A |
| AC frequency | 50 |
| Protection class | IP44 |
| Maximum power | 3680 W |
| Max. output current | 16 A |
| Color | white |
| Packaging | cardboard box |
| Operating temperature | -6 - 30 °C |
